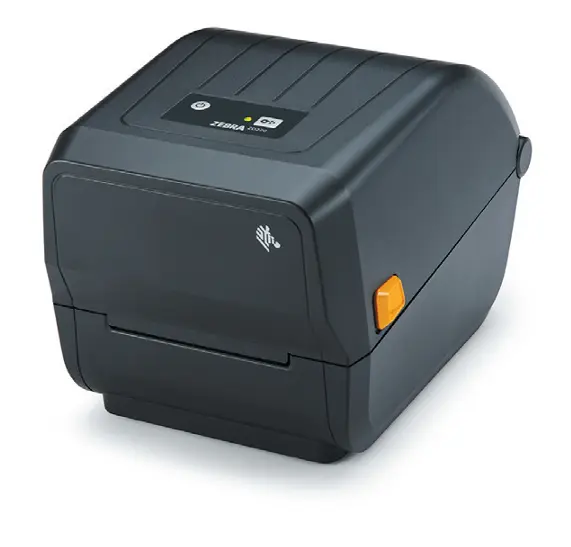

ZD230™ Printer

About Product:

ZD230™ Printer is a compact and reliable desktop printer designed for small to medium businesses requiring high-quality thermal printing. With its user-friendly OpenACCESS design and versatile connectivity options, this printer delivers professional-grade performance for everyday labeling needs. Perfect for retail, healthcare, logistics, and office environments where space is premium but quality cannot be compromised.

Key Features:

🧩 Compact & User-Friendly Design OpenACCESS design for easy media loading with intuitive operation. Compact footprint perfect for desktop environments while maintaining professional print quality up to 6 ips.	🖨️ Versatile Printing Options Supports both direct thermal and thermal transfer printing for barcodes, text, and graphics. 203 dpi resolution ensures crisp, clear output for all your labeling needs.
🔗 Flexible Connectivity Standard USB 2.0 connectivity with optional Ethernet, Wi-Fi 802.11ac, and Bluetooth 4.1 options. Choose the connectivity that best fits your workflow requirements.	🚀 Enterprise-Ready Performance 128 MB Flash memory and 128 MB SDRAM with ZPL II and EPL2 programming language support. Compatible with existing Zebra printer workflows and systems.

Applications:

Retail & Point of Sale
Shipping & Logistics
Office & Administration
Healthcare & Patient ID
Inventory Management
Small Business Operations

Technical Specifications:

Print Resolution	203 dpi (8 dots/mm)
Print Speed	Up to 6 ips maximum
Print Width	4.09" (104 mm) maximum
Media Width	1.00" - 4.40" (25.4 - 112 mm)
Label Length	Min: 1" (25.4 mm), Max: 39" (991 mm)
Memory	128 MB Flash, 128 MB SDRAM
Programming Languages	ZPL II, EPL2, EPL1
Connectivity	USB 2.0 (standard), Optional Ethernet/Wi-Fi/Bluetooth
Operating Temperature	40°F to 105°F (5°C to 41°C)
Dimensions (W×D×H)	Direct Thermal: 6.9" × 8.6" × 5.9" Thermal Transfer: 7.75" × 10.5" × 7.5"
Weight	2.5 lbs (1.1 kg)
Warranty	Two-year standard warranty

Why Choose ZD230 Printer?

Energy Efficient & Certified

ENERGY STAR certified with Energy Efficiency Level VI compliance, reducing operational costs while maintaining high performance standards.

Multi-Language Support

Unicode compliant for multi-language printing with support for various DOS and Windows codepages, perfect for international operations.

Comprehensive Barcode Support

Compatible with SOTI Connect device management solution and PrintNet Enterprise for remote monitoring and management across your printer fleet.

Easy Integration

Supports all major brands of RFID inlays and on-metal tags with comprehensive language compatibility for seamless integration.

Available Models:

ZD230d (Direct Thermal)

Compact direct thermal model ideal for receipt paper, labels, and wristbands. Perfect for applications where ribbon is not needed.

Best for: Receipts, shipping labels, patient wristbands

ZD230t (Thermal Transfer)

Full-featured thermal transfer model supporting both direct thermal and ribbon printing for durable, long-lasting labels.

Best for: Asset tags, product labels, outdoor applications

Optional features:

Factory-installed USB and Ethernet connectivity
Factory-installed USB and Bluetooth 4.1
Factory-installed USB 802.11ac Wi-Fi and Bluetooth 4.1
Optional media core adapters for 1.5", 2", and 3" ID core sizes

Ready to Solve Your RFID Challenges?

Contact our RFID specialists today to discuss how our product can address your specific identification and tracking needs.

We'll work with you to design a solution that improves efficiency, reduces costs, and delivers reliable performance.

Ready to streamline your printing operations?

Contact our specialists to discuss how the our product can enhance your labeling productivity and operational efficiency.

All specifications are subject to standard industry tolerances. Performance may vary based on application environment and conditions. Please consult with our technical team for application-specific guidance.*
