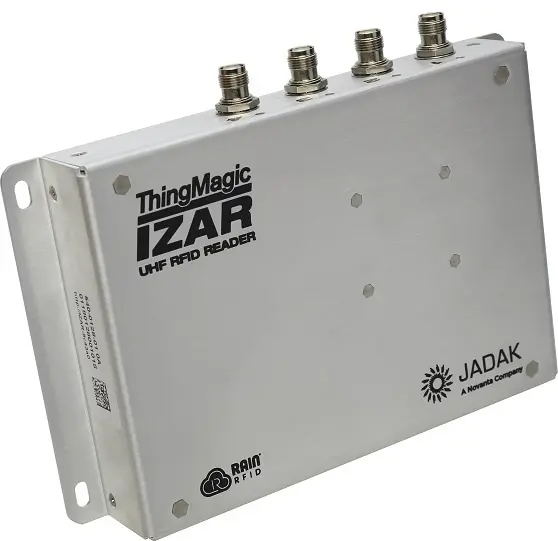

ThingMagic IZAR UHF RFID Reader


About Product:

ThingMagic IZAR UHF RFID Reader is a Compact 4-Port Network-Attached Reader with Read and Write Capability. It can state-of-the-art performance of over 750 tag reads per second allows it to be used in a wide variety of applications. Output power levels of up to +31.5 dBm and high receiver sensitivity permit longer read distances.

Key Advantages:

⚙️ Powerful Processor
ThingMagic IZAR is embedded with a powerful ARM Cortex processor running the Linux OS, supported by generous DDR and FLASH memory.
🌐 Universal Compatibility
Supports the full RAIN UHF RFID Gen2v2 spec and custom tag features, enabling powerful applications across various industries.
🔧 RAINstream Compatible
Configure and manage settings via a built-in web interface. Admins can view status, run diagnostics, update firmware, and test tags with ease.
🔌 Multiple Data Interfaces
Connect via LAN, USB, or add adapters for Bluetooth, serial, and more. Offers flexible integration with a wide range of systems.

Applications:

  • Warehouse & Supply Chain
  • Inventory Monitoring
  • Access Control
  • Cabinets and Lockers
  • Portals
  • In-Vehicle Applications

Technical Specifications:

Physical
Dimensions 194 × 139 × 33.6 mm
Weight 0.7 kg
Antenna Connectors Four RP-TNC connectors
Performance
Max Read Rate >750 tags/second
Max Read Distance >9m (30 ft) with 9dBiC antenna
RF Power Output 0 to +31.5 dBm (adjustable)
Operating Temperature -40°C to +60°C
Connectivity
Primary Interface RJ45 10/100 Base-T Ethernet
Power DC 9–30V, PoE/PoE+ compatible
Additional Ports USB Type B, USB Type A, Micro SD
Protocol Support
RFID Standards EPCglobal Gen 2V2 (ISO 18000-63)
Programming API Mercury API (Java, C, C#/.NET)
Management Web-based configuration


Why Choose IZAR?

Proven Technology

Built around proven ThingMagic technology with advanced "Tagnostic" functionality and Mercury API for easy software development.

Network Ready

Compact design with network connectivity eliminates complex cabling while providing enterprise-grade performance.

Future Proof

RAINstream compatibility and comprehensive protocol support ensure long-term value and easy integration.

Ready to Solve Your RFID Challenges?

Contact our RFID specialists today to discuss how our product can address your specific identification and tracking needs.

We'll work with you to design a solution that improves efficiency, reduces costs, and delivers reliable performance.


Ready to implement high-performance RFID?

Contact our technical team to discuss how the ThingMagic IZAR can solve your specific tracking and identification challenges.

Contact Us!

All specifications are subject to standard industry tolerances. Performance may vary based on application environment and conditions. Please consult with our technical team for application-specific guidance.*
