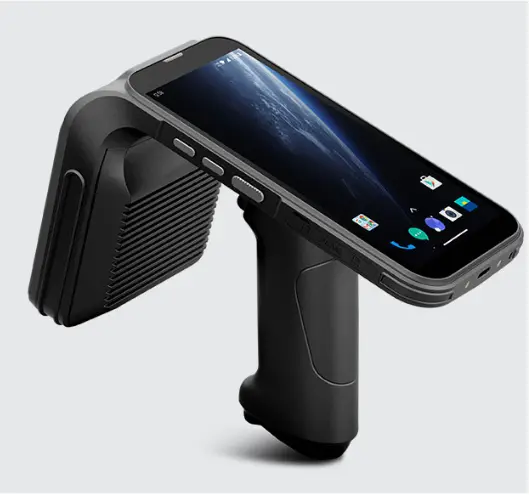

​​T3 RFID Handheld Reader based on Chainway C5 (Bronze) ​

Purpose:

The T3 RFID Handheld Reader based on Chainway C5 (Bronze) is built for mobile and flexible long-range RFID tag capturing in light industrial, warehousing/supply chain, and manufacturing applications.  It also supports barcode and QR code reading.


Key Specifications:

Operating System Android 11
Air Interface Protocol EPCglobal Gen 2 (ISO18000-6C)
Read Rate 900+1300+ tags / sec (Circular Polarized) tags/second
Transmit power 1W (30dBm, +5dBm to +30dBm adjustable)
Tag Read Distance Up to 30m
RFID Antenna Type Circular polarization; 5dBic
Sealing IP65
Network Connections 802.11 a / b / g / n / ac, 2.4G / 5G dual-band, 3/4G and Bluetooth 5.0
Power Source 6700mAh / 13400mAh removable pistol battery Built in 100mAh backup battery, supporting battery hot swap
Dimensions 177.0 x 80.2 x 14.8mm
Weight 626g
Price*
Lead Time*

Contact us

Benefits of Our Product:

Exceptional Long-Range & High-Speed Tag Reading ​

With a tag read distance of up to 30 meters and the ability to process 900 to 1300+ tags per second, this device offers powerful and efficient RFID scanning—ideal for demanding environments like warehouses and manufacturing plants.

Versatile Data Capture: RFID + Barcode & QR

​Beyond RFID, this handheld reader also supports barcode and QR code scanning, making it a multi-functional tool for inventory management, order picking, and asset tracking—all in a single rugged device.

Hot-Swappable Power for Continuous Use ​

Equipped with a large 6700mAh / 13400mAh removable battery and a built-in backup battery, it supports hot swapping for zero downtime during shifts. Combined with IP65 protection, it's built for long-lasting, real-world field use.

Ready to Solve Your RFID Challenges?

Contact our RFID specialists today to discuss how our product can address your specific identification and tracking needs.

We'll work with you to design a solution that improves efficiency, reduces costs, and delivers reliable performance.


Get Started Today!

📞 Contact our technical consultation team

📧 Request samples for testing

📋 Custom your quotation based on your requirements​

Contact Us!

All specifications are subject to standard industry tolerances. Performance may vary based on application environment and conditions. Please consult with our technical team for application-specific guidance.*
