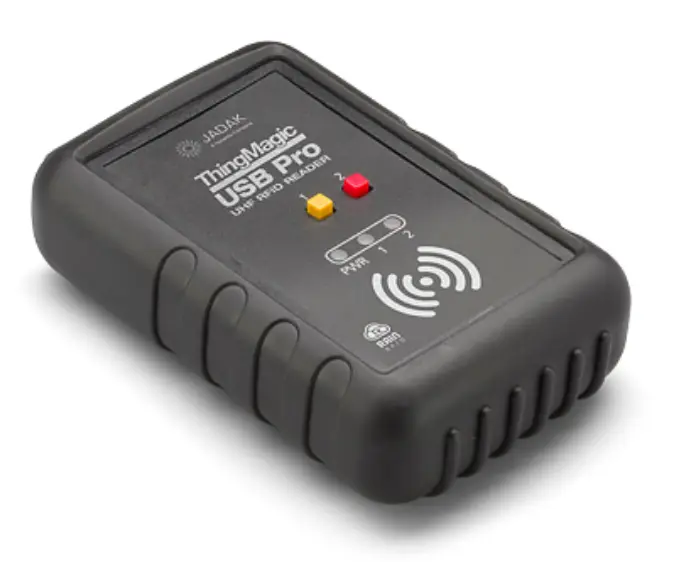

T3 RFID Desktop Reader and Encoder based on ThingMagic

Purpose:

T3 RFID Desktop reader and encoder based on ThingMagic for tag commissioning stations, retail point of sale, workflow for events registration and document tracking.

Key Specifications:

Air Interface Protocol Support for EPC global Gen 2 (ISO 18000-6C)
Read Rate Up to 50 tags per second
Transmit power -5 to +30 dBm
Tag Read Distance Tag read distance up to 10 m (30 feet) with external antenna and up to 1.2 m (4 feet) distance, depending on tag sensitivity and orientation with internal antenna with max RF power
Antenna Port 2
Antenna Impedance 50 Ohm
Interface USB
Power Source Powered by USB connection to notebook or desktop PC
Dimensions 150k97 mm L x 61 mm W x 25 mm H (3.8 in L x 2.4 in W x 1.0 in H)
Price*
Lead Time*
Trigger* Sensor Trigger or Continuous Reading

Contact us

Benefits of Our Product:

Compact & USB-Powered for Easy Deployment

With a small footprint and USB-powered design, the reader is ideal for use at desks, registration counters, or retail checkout points. Thus, no additional power supply required, making it highly portable and easy to install.

Versatile Tag Commissioning & Tracking Applications

Perfect for tag commissioning, event check-ins, document tracking, and retail POS, the device supports both sensor-triggered and continuous reading modes to fit different workflows.

Flexible Antenna Configuration with Reliable Read Range ​​

Equipped with 2 antenna ports and capable of reading up to 50 tags per second, the desktop reader delivers impressive read performance—up to 10 meters with an external antenna and 1.2 meters with the internal antenna.

Ready to Solve Your RFID Challenges?

Contact our RFID specialists today to discuss how our product can address your specific identification and tracking needs.

We'll work with you to design a solution that improves efficiency, reduces costs, and delivers reliable performance.


Get Started Today!

📞 Contact our technical consultation team

📧 Request samples for testing

📋 Custom your quotation based on your requirements​

Contact Us!

All specifications are subject to standard industry tolerances. Performance may vary based on application environment and conditions. Please consult with our technical team for application-specific guidance.*
