T3 Precision Positioning based on BlueIOT BLE Receivers (BA300-t/p/w)

Purpose:

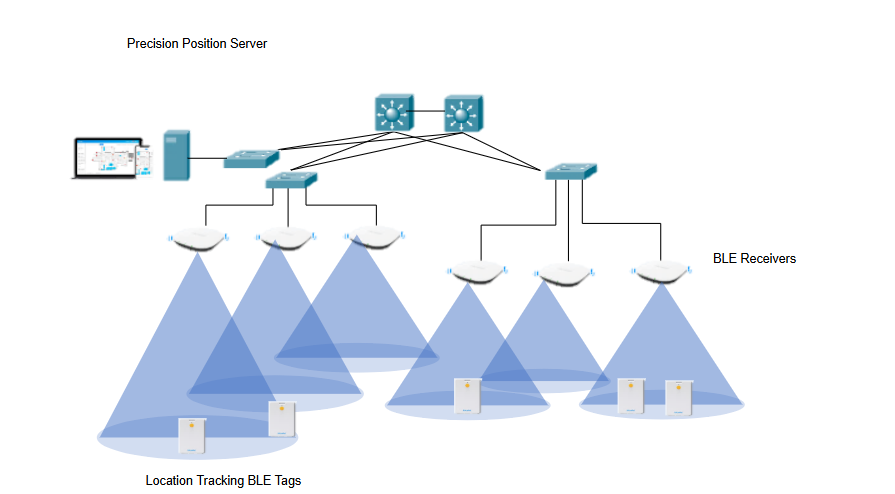

To provide real time precision positioning of BLE tracking tags with accuracy of  0.1-1m. Different type of tags including staff pass/visitor tags, wristband tags, assets tags for various purposes

Receiver Key Specifications:

Position Technology Bluetooth AoA, accuracy 0.1~ 1.0m
Position Diameter 18-25m diameter (submeter level)
Protocol Standard Bluetooth 4.0 or above
Interface 10/100M RJ45
Type of Antenna Built-in omnidirectional antenna
Frequency Band 2.4GHz ~ 2.4835GHz
Dimension 230mm×230mm×35mm
Installation Ceiling and suspension, maximum installation height 20m
Power Supply interface IEEE 802.3af/at PoE 48V,DC12-24V
Power Consumption <3W
Operating Environment Indoor (BA300-t), Outdoor (BA300-p), Water Proof (BA300-w)
Price*
Lead Time*
Refresh Rate 0.1Hz-30Hz, adjustable

Contact us

Benefits of Our Product:

High-Accuracy Real-Time Tracking

With Bluetooth AoA (Angle of Arrival) technology, the system achieves sub-meter accuracy (0.1m–1.0m)—ideal for high-precision tracking of staff, visitors, or assets in dynamic environments like hospitals, factories, or warehouses.

Flexible Deployment Across Indoor and Outdoor Spaces

Available in multiple variants (indoor, outdoor, and waterproof models), the BA300 series is versatile for various use cases. It also supports ceiling and suspension mounting up to 20m, making it easy to install in both low- and high-ceiling environments.

Low Power, Wide Coverage, and Scalable

Each receiver covers a positioning diameter of 18–25m with low power consumption (<3W) and supports refresh rates up to 30Hz. This allows for scalable and energy-efficient deployments in both small-scale and enterprise-level tracking systems.
