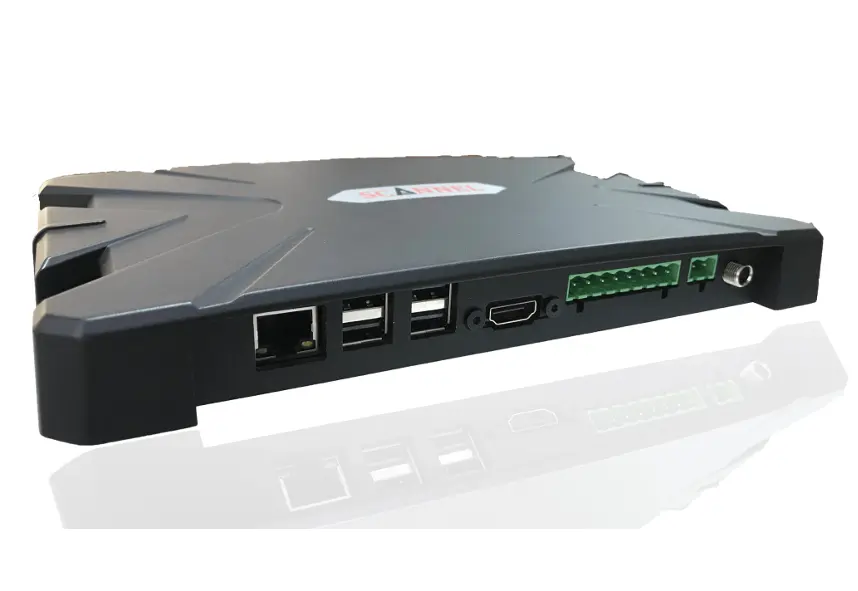

RU224-51 UHF RFID Reader ​


Overview of Product:

The RU224-51 is a next-generation UHF RFID Reader designed by Scannel to integrate seamlessly with the evolving Internet of Things (IoT) and Industrial Internet of Things (IIoT) landscapes. This device features a Linux-based micro-computer and a high-performance Impinj R2000 UHF RFID Chip. It offers a long read range and fast multi-tag reading capabilities through its four antenna ports. Its advanced heat sink design prevents overheating, ensuring maximum performance. The RU224-51 comes with built-in multi-connectivity options like WiFi, BLE, and TCP/IP, along with self-powered GPIO for simplified installation across various applications.

Key Features:

High Performance Chip Equipped with the Impinj R2000 UHF RFID Reader Chip for top-of-the-line performance, enabling fast and accurate tag reading.
Multi-Connectivity Supports Ethernet, Dual-Band WiFi (802.11ac), and Bluetooth 4.2 (BLE), providing versatile networking options for various environments.
Built-in Linux Micro-computer Functions as a standalone system with its own Linux OS and 16GB storage, eliminating the need for an external computer for data processing and storage.
4 UHF RFID Antenna Ports with GPIO Offers four configurable antenna ports for flexible coverage and integrated GPIOs (4 Input/4 Output) for controlling external devices and automating processes.

Applications:

  • Supply Chain Management
  • Logistics and Inventory Control
  • Cargo Tracking
  • Warehouse Management



Technical Specifications:

Feature Specification
Air Interface ProtocolEPC global UHF Class 1 Gen 2 / ISO 18000-6C / ISO 18000-6B
UHF Frequency865MHz - 928MHz (ETSI/FCC)
Output Power0–30 dBm (1W) (Configurable)
Peak Inventory Speed>700 tags/sec

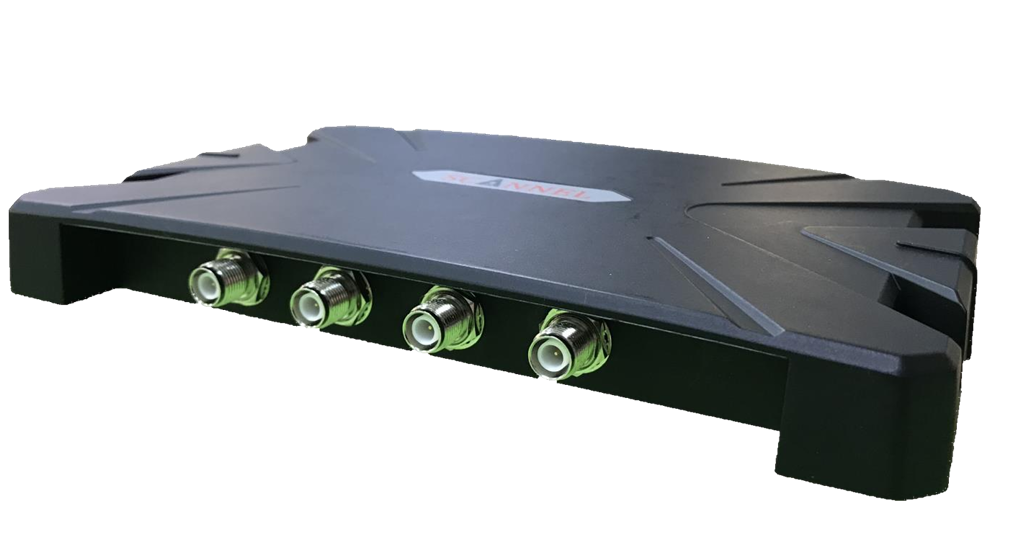

Antenna Ports4 Ports (RP-TNC-Female)
CPU1.2 GHz Quad-Core ARM Cortex-A53
RAM1GB LPDDR2 SDRAM
Storage16GB
WiFiDual-Band 802.11ac wireless LAN (2.4GHz / 5GHz)
BluetoothBluetooth 4.2
EthernetGigabit Ethernet over USB2.0 (max 300Mbps)
DisplayHDMI (Full Size Type A)
USB4 Ports (USB2.0)
GPIO (12V)4 Input / 4 Output
Operating SystemLinux (Debian distribution)
Power Input12V
Dimensions230mm (L) x 160mm (W) x 28mm (H)
Weight1.8 kg
Operating Temperature-20°C ~ +55°C
Storage Temperature-20°C ~ +85°C


Why Choose RU224-51 UHF RFID Reader​?

Powerful & Flexible Integration

The Giga-Tms RU224-51 is designed for modern IoT and IIoT environments. It features an integrated Linux micro-computer for autonomous operation and support for multiple programming languages. In addition, this enable extensive customization.

Versatile Connectivity & Control

With built-in WiFi, Bluetooth, and Ethernet, it offers seamless network integration. Its four antenna ports and self-powered GPIOs provide comprehensive coverage and automated control in diverse industrial settings.

Reliable High Performance

A robust design, including an advanced heat sink, ensures reliable, high-performance operation for critical applications, making it a dependable choice for demanding environments.

Ready to Solve Your RFID Challenges?

Contact our RFID specialists today to discuss how our product​ can address your specific identification and tracking needs.

We'll work with you to design a solution that improves efficiency, reduces costs, and delivers reliable performance.


Ready to implement high-performance RFID?

Contact our technical team to discuss how our product​ can solve your specific tracking and identification challenges.

Contact Us!

All specifications are subject to standard industry tolerances. Performance may vary based on application environment and conditions. Please consult with our technical team for application-specific guidance.*
