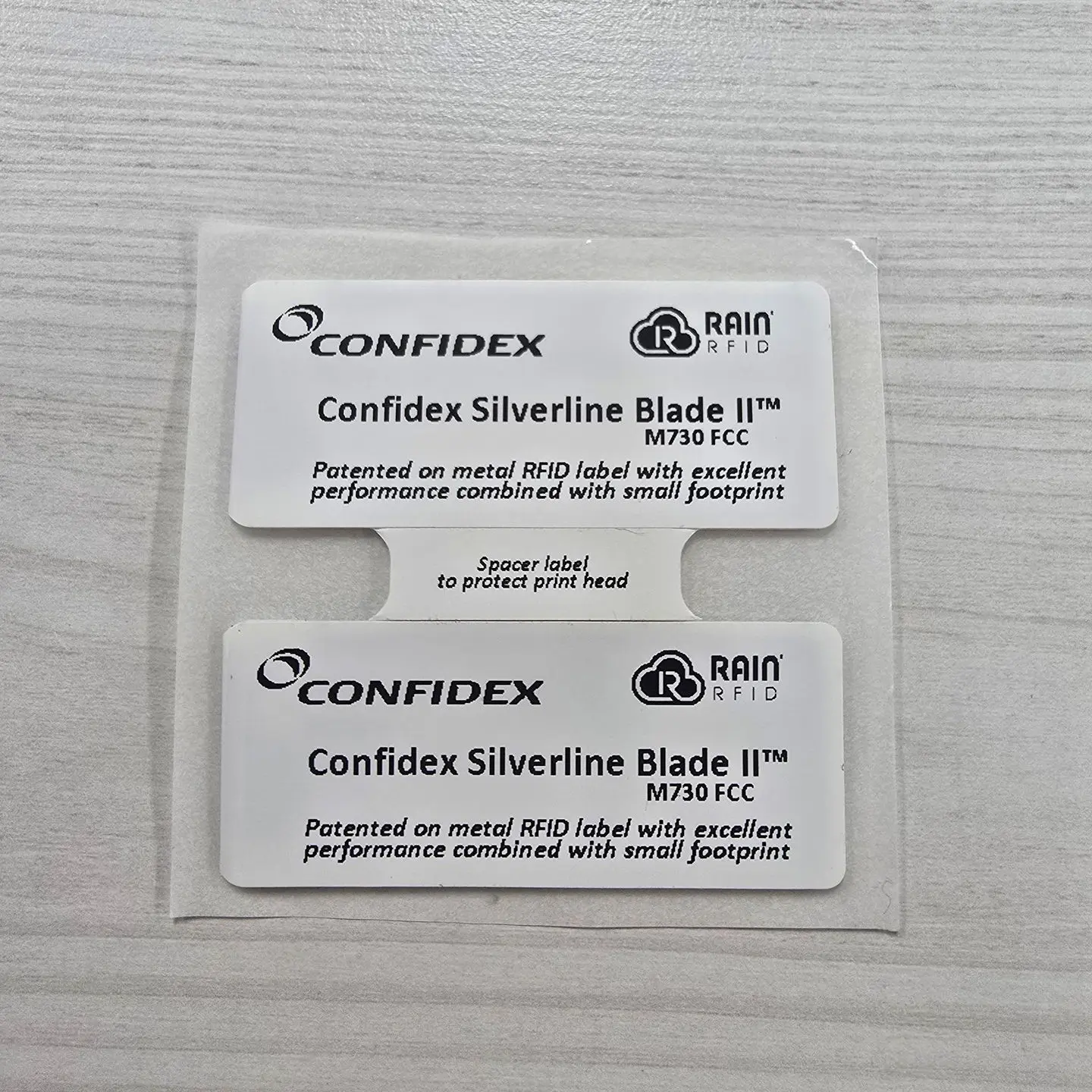

Confidex Silverline Blade II™

On Metal RFID Label with Exceptional Performance
High tack adhesive for challenging surfaces and extreme environments

Benefits of Our Product:

Superior Metal Performance

Specifically optimized for metal applications with read ranges up to 10 meters (33 feet) on metal surfaces. Perfect for tracking metal assets where traditional RFID tags fail.

Extreme Environmental Durability

IP68 water resistance, chemical resistance to acids and solvents, operational temperature from -35°C to +85°C. Built for the harshest industrial conditions.

Versatile Surface Compatibility

Works effectively on any surface including plastic, liquid containers, and curved surfaces. One solution for all your asset tracking needs.

Product Specifications

Electrical:

Air Interface Protocol	EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Operating Frequency	ETSI: 865–869 MHz \| FCC: 902–928 MHz
IC Type	Impinj® M730
Memory	EPC 128 bits, TID 96 bits
EPC Memory Content	Unique random 96-bit EPC in every label
Max Read Distance	On Metal: Up to 10 m (33 ft) On Plastic: Up to 5 m (16 ft) On Liquid: Up to 4 m (13 ft)
Applicable Surface Materials	Optimized for metal but works on any surface

Mechanical:

Tag Form Factor	Hard label tag
Label Surface	Printable white PET
Recommended Ribbon	Zebra 5095 resin ribbon
Attachment Method	High tack adhesive with excellent adhesion to all surfaces
Dimensions	60 x 25 x 1.4 mm (2.36 x 0.98 x 0.055 in)
Weight	0.9 g
Curved Surface Application	Minimum bending diameter: 100 mm

Environmental:

Operating Temperature	-35°C to +85°C (-31°F to +185°F)
Peak Temperature	+110°C (230°F) for 10 minutes
Water Resistance	IP68 (tested 5 hours at 1m depth)
Washing Resistance	Industrial washing with standard solvents
Chemical Resistance	Sulfuric acid, motor oil, salt water, NaOH tested
Storage Condition	1 year at +20°C / 50% RH

Delivery & Compatibility:

Delivery Format	400 pcs good labels on reel (>95% yield)
Printer Compatibility	Zebra ZT410 / ZT411 RFID Silverline printers
Part Numbers	ETSI: 10026767 \| FCC: 10026768
