​ATLAS Omni-ID® IQ 600

About Product:

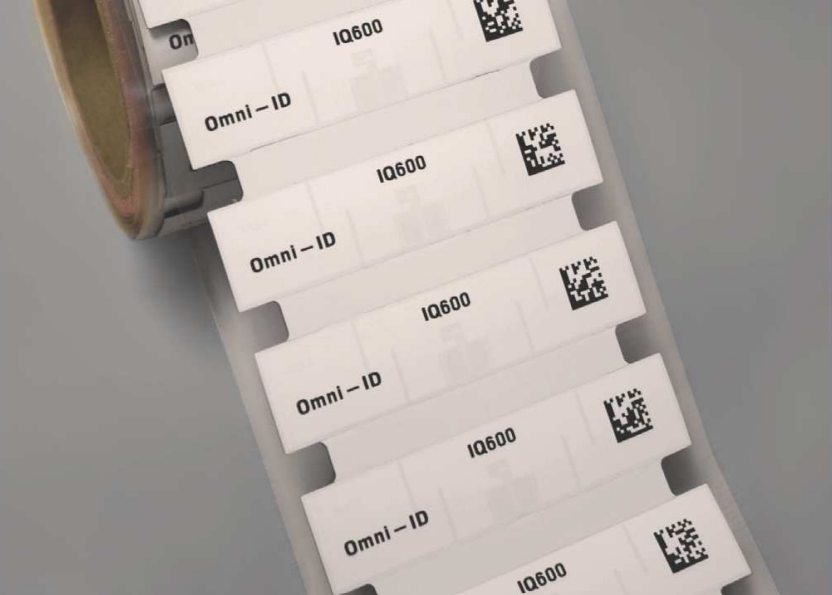

ATLAS Omni-ID® IQ 600 is a Ultrathin On-Metal RFID Label with low profile label optimized for thermal barcode printers with hassle-free RFID deployment

Key Applications:

  • Logistics involving metal produce or packaging
  • Pipe manufacturing and re-certification
  • IT, office & hospital assets tracking solutions
  • Manufacturing process tracking
  • Supply chain visibility


RF Specifications:

Protocol EPC Class 1 Gen2v2
Frequency Range (MHz) 866–868 (EU)  |  902–928 (US)
Material Compatibility
  • With ground plane: Optimized for all materials
  • Without ground plane: Suitable for bare aluminum

Physical Specifications:

Material White synthetic label
Size (mm) - No Ground Plane 96.0 x 24.0 x 1.1 mm
Size (mm) - With Ground Plane 96.0 x 24.0 x 1.1 mm (+4 / -0.5)
Size (in) - No Ground Plane 3.78 x 0.94 x 0.04 in
Size (in) - With Ground Plane 3.78 x 0.94 x 0.04 in (+/- 0.02)
Weight (g) 2.0

IC Types & Performance:

Impinj Monza R6-P (Standard)

Read Range with ground plane: Up to 6m

Handheld Reader: Up to 3m

Memory:

  • EPC – 128/96 bits
  • User – 32/64 bits
  • Unique TID – 48 bits

Impinj Monza 4QT (Custom Option)

Read Range with ground plane: Up to 5m

Handheld Reader: Up to 2.5m

Memory:

  • EPC – 128 bits
  • User – 512 bits
  • Unique TID – 48 bits

Environmental Specifications:

Operation Temperature -40 to +85°C
Max Temperature Exposure -40 to +85°C
Application Temperature +18 to +35°C
IP Rating IP68
Attachment Self-adhesive suitable for curved surfaces to a minimum radius of 35mm
Certifications RoHS approved, CE approved (option)
Printer Compatibility Sato, Zebra, Honeywell
Warranty 1 year

Ordering Information:

Order Numbers
  • 133 – EU US with Monza R6-P
  • 134 – EU US with Monza 4QT (custom)
Options
  • 303 – Customization (4-color static print)
  • 304 – Prelamination
  • 325 – Without ground plane
  • 701 – Standard Service Bureau
Supply Format 500 labels per roll
Minimum Order Quantity
  • R6-P Standard: 500 labels (1 roll)
  • Service Bureau: 500 labels (1 roll)
  • Customization: 10,000 labels
  • Prelamination: 10,000 labels

Benefits of Our Product:

Thermal Printer Optimized​

Specifically designed for thermal barcode printers enabling low cost and hassle-free RFID deployment with consistent reliability across manufacturing and supply chain processes.

Ultrathin Low Profile

At just 1.1mm thick, the IQ 600 provides exceptional on-metal performance within an ultra-thin profile, perfect for space-constrained applications.

Versatile Surface Compatibility

Optimized for all materials with and without ground plane, suitable for bare aluminum, and works excellently on liquid containers and curved surfaces.
