Alien ALN-9762 Short Inlay (Higgs™ 4) RFID tag ​

Product Overview:

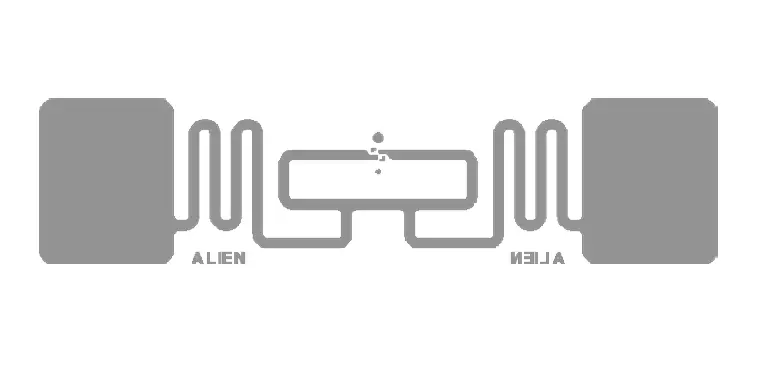

The ALN-9762 “Short” Inlay from Alien Technology is a narrow, high-performance UHF RFID inlay built on the Higgs™ 4 chip. Designed for space-constrained labeling applications, it combines strong global read/write performance with a compact footprint, making it ideal for item-level tagging in retail, logistics, and industrial environments.

Technical Specifications:

📐 Technical Specifications – Alien ALN-9762 Short Inlay
Chip Alien Higgs™ 4
EPC Memory 128 bits
User Memory 128 bits
TID Memory 32-bit + 64-bit unique serial number
Frequency Range UHF 840 – 960 MHz
Protocol EPCglobal Gen2v2 / ISO 18000-6C
Operating Temperature -40°C to +70°C
Adhesive Options Wet inlay & dry inlay (with permanent adhesive)
Inlay Size Antenna: 70 × 17 mm
Wet Inlay: 73.5 × 21.2 mm
Print Surface Thermal transfer printable (wet inlay)
Read Range Up to 11 meters (depending on antenna setup)

Ideal Solutions & Use Cases

  • Retail item-level tagging (apparel, cosmetics, accessories)
  • Carton, case, and pallet labeling
  • Asset and file folder tracking
  • Supply chain & logistics traceability
  • Applications on plastic or non-metallic surfaces

Key Benefits &  Solutions

Compact & High Performing ​

Narrow format fits small labels without compromising RFID range and accuracy. ​

Dual Memory Support ​

Offers both EPC and user memory for flexible item tracking and on-tag data applications.

​Global Compatibility

Works across international UHF bands (840–960 MHz), suitable for worldwide deployment.
